In modern industrial manufacturing, structural engineering, machinery production, and everyday furniture assembly, theboltstands as one of the most fundamental and vital mechanical components—often referred to as the "cell of industry." As a core member of the fastener family, it may be small in size, but it bears massive loads, maintaining the structural integrity and operational safety of massive machinery and monumental engineering projects alike.
This article provides a deep, scientific analysis of the basic structure, mechanical functions, and key comparisons of bolts, alongside an industry-grade classification and selection guide.
1. What is a Bolt? Dissecting the Basic Structure
A bolt is acylindrical mechanical fastener featuring external threads, typically designed to mate with a nut. Its primary physical function is to securely join and fasten two components together through pre-drilled clearance holes. This assembly method constitutes a detachable connection, meaning the joints can be loosened or retightened at any time without damaging the components themselves.
A standard mechanical bolt consists of three core components:
1.1 The Bolt Head

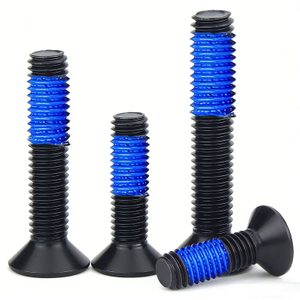

Located at the very top of the bolt, its primary function is to provide a drive surface for tools such as wrenches, sockets, or screwdrivers during installation. It also serves as the bearing surface when tightened. The most ubiquitous shape is the regular hexagon (hex bolt), though square, round, and countersunk heads are also common depending on application requirements.
1.2 The Shank
The cylindrical main body extending downward from the head. The shank is further divided into two distinct sections:
The Unthreaded Portion (Grip Length): Typically located closer to the head, its smooth diameter fits tightly within the clearance holes of the joined parts, primarily bearing shear loads (transverse forces trying to slide the parts apart).
The Threaded Portion: The region engraved with continuous, helical grooves designed to engage with the internal threads of a nut or a pre-tapped hole.
1.3 The Tip / Point
The guiding end at the very bottom of the bolt. To facilitate a smooth entry into clearance holes or the mating nut, the tip is usually chamfered or rounded, preventing the sharp leading edge from stripping or damaging the threads during alignment.
2. The Soul of Mechanics: Core Functions and Working Principles
A bolt does not simply "catch" or hold objects together passively. When tightened, it operates under strict physical and mechanical principles:
2.1 Leveraging the Helical Angle to "Multiply Force"
The thread of a bolt is essentially an inclined plane (a helix) wrapped around a cylinder. According to the physics of inclined planes, when a wrench applies a small rotational torque to a bolt or nut, that circumferential force is converted across the inclined plane into a massive axial, linear force, tightly compressing the clamped parts together.
2.2 Utilizing Preload for Friction-Based Locking
As a bolt is tightened, the shank experiences tensile stretching while the clamped components experience compression. Due to this elastic deformation, the shank acts like a stiff spring, generating an inward, pulling force known as axial preload. This force creates immense friction between the contact surfaces of the joined parts, ensuring they will not slide relative to one another or loosen under vibrations, impacts, or external operational loads.
2.3 Achieving Efficient, Damage-Free Disassembly
Compared to welding (an irreversible, destructive joint) or riveting, the greatest advantage of a bolted connection is its serviceability. When a machine requires maintenance, part replacement, or disassembly for transportation, the bolts can simply be unscrewed, leaving the original structural components entirely undamaged.
3. Scientific Comparison: Key Differences Between Bolts, Screws, and Studs
In daily conversation, people often use the terms bolts, screws, and studs interchangeably. However, in precise mechanical engineering, they have distinct differences in load distribution and mating methods:
Dimension
Bolt
Screw
Stud (Stud Bolt)
Structural Features
Features a distinct external hex or large head; the shank consists of a threaded section and often a smooth grip section.
Head typically features an internal drive recess (e.g., Phillips, slotted, hex socket); generally has a smaller diameter.
Headless design; features external threads on both ends, occasionally with a smooth center section.
Mating & Fastening Method
Passes through clearance holes and must mate with a nut or thread into a massive, tapped component to secure the joint.
Typically drives directly into a pre-tapped internal thread of a component without a nut, clamping the parts directly.
One end is permanently threaded into a substrate, the other passes through the joining part and is secured on the outside with a nut.
Core Mechanical Advantage
Superb tensile and shear resistance; ideal for heavy-duty, structural, load-bearing connections.
Compact profile; ideal for light-to-medium loads, space-constrained areas, or where a flush surface finish is required.
Excellent for frequent disassembly, high-vibration applications, or when threading into softer substrates (e.g., aluminum, cast iron).
4. Summary and Selection Criteria
The varieties of bolts number in the tens of thousands across global industries. For practical engineering and equipment maintenance, selecting the correct bolt must follow three foundational principles:
Check the Strength Grade: Carbon steel boltsare generally classified into ten property classes ranging from 3.6 to 12.9. Standard furniture or light structures typically use Grade 4.8 or 5.8 bolts. However, in automotive chassis, structural steel buildings, and heavy machinery, high-strength fasteners treated by quenching and tempering (such as Grade 8.8, 10.9, or 12.9) are mandatory.
Assess the Operating Environment: For dry, non-corrosive indoor applications, cost-effectivezinc-plated carbon steel bolts are sufficient. In contrast, for chemical plants, marine coastal environments, or humid bathrooms, Grade 304 or 316 stainless steel bolts must be used to prevent catastrophic rust and stress-corrosion cracking.
Evaluate Working Loads: If the joint is subject to high-frequency, continuous vibration (such as in internal combustion engines or conveyor belts), selecting the right bolt grade is only half the battle. You must pair it with spring washers, nylon-insert lock nuts, or thread-locking fluid (loctite) to ensure the preload does not degrade over time.
