In the vast world of industrial fasteners, the hex bolt(commonly referred to as an external hexagon bolt) is arguably the most recognizable and widely utilized component. From heavy duty construction and massive bridges to automotive assemblies and industrial machinery, the hex bolt serves as a fundamental coupling element that holds the modern world together.
Understanding its geometric engineering, material classifications, and proper application criteria is vital for procurement specialists and mechanical engineers alike. This article provides a professional, scientific breakdown of what a hex bolt is, how it operates, and where it is applied across global industries.
1. Scientific Definition and Technical Structure of a Hex Bolt
To select the correct fastener for structural designs, one must understand the precise engineering characteristics that define a hex bolt.

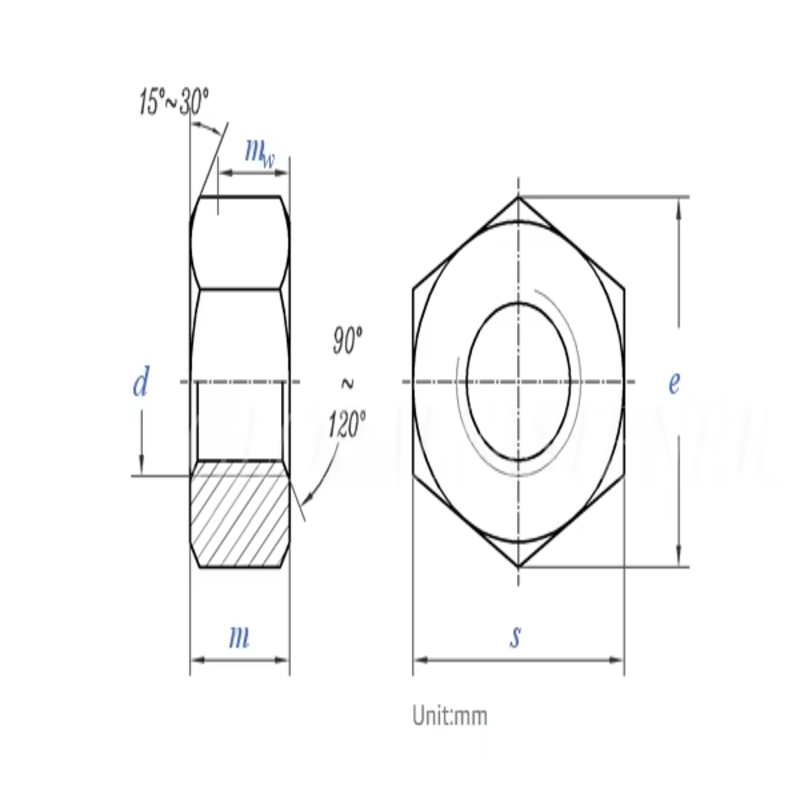

1.1 Geometric Characteristics and Design
A hex bolt is a threaded fastener featuring a six-sided, hexagonal head designed to be tightened or loosened using a standard wrench, socket, or spanner. It consists of three primary sections: the hexagonal head, which provides a flat bearing surface to distribute clamping forces; the unthreaded shank (in partially threaded configurations), which offers superior shear strength within a joint; and the threaded portion, which mates with an internal thread or a nut to convert rotational torque into linear tension.
1.2 The Mechanics of the Hexagonal Configuration
The choice of a six-sided head is a result of precise mechanical optimization. A hexagon offers an ideal balance between wrenching accessibility and material stripping resistance. It requires a turning radius of only 60 degrees to adjust, allowing technicians to effectively tighten the bolt in confined spaces where a square head (requiring 90 degrees) cannot operate. Furthermore, the six distinct corners provide ample contact points for tools, minimizing the risk of rounding off the head under high torque loads.
2. Material Classifications and Strength Grades
Hex boltsare engineered from various metal alloys and are classified into distinct strength grades governed by international regulatory bodies such as ISO, SAE, and ASTM.
2.1 Carbon Steel and Alloy Steel Gradings
The mechanical capacity of a steel hex bolt is designated by its property class or grade. Under the international ISO 898-1 standard, you will commonly find markings stamped on the bolt head, such as 4.8, 8.8, 10.9, or 12.9:
Low/Medium Carbon Steel (Class 4.8 & 8.8): These offer reliable tensile strength and excellent ductility, making them suitable for general mechanical assemblies and light structures.
Alloy Steel (Class 10.9 & 12.9): These undergo rigorous quenching and tempering heat treatments to achieve ultra-high tensile strengths (up to 1200 MPa). They are reserved for high-stress applications like automotive engines and heavy industrial suspension systems.
2.2 Stainless Steel and Non-Ferrous Alloys
When an application demands protection against aggressive chemical environments or marine salt spray, stainless steel hex bolts are utilized. The most prevalent gradings include A2-70 (equivalent to AISI 304) and A4-80 (equivalent to AISI 316), with the latter containing molybdenum to resist pitting corrosion in chloride-rich environments. For specialized industries like aerospace or chemical processing, hex bolts may be forged from titanium or nickel alloys to achieve exceptional strength-to-weight ratios and thermal stability.
3. Core Technical Metrics and Global Standards for Hex Bolts
To provide procurement teams and technical inspectors with an immediate reference for engineering compliance, the following table organizes the primary strength grades of hex bolts alongside their mechanical capabilities and international standard equivalents:
Standard automotive parts, factory machinery, steel structures.
ISO Class 10.9
Medium carbon alloy steel (quenched & tempered)
1000 MPa
900 MPa
ISO 898-1 / SAE J429
Engine cylinder heads, structural steel joints, heavy rail infrastructure.
ASTM A325
Medium carbon steel or weathering steel
825 MPa (approx)
635 MPa (approx)
ASTM F3125
Heavy civil engineering, skyscraper skeletons, structural bridge joints.
Stainless A4-80
AISI 316 Stainless Steel (cold worked)
800 MPa
600 MPa
ISO 3506-1
Marine vessels, chemical processing facilities, wastewater treatment.
4. Main Types and Thread Configurations of Hex Bolts
Not all hex bolts are shaped identically; modifications in threading and head dimensions dictate their exact functional placement.
4.1 Fully Threaded vs. Partially Threaded Bolts
Fully Threaded Hex Bolts (Tap Bolts): The thread extends from the very tip of the shank all the way to the underside of the head. These are primarily utilized in threaded blind holes where maximum thread engagement is required to prevent pull-out under tension.
Partially Threaded Hex Bolts: These feature a smooth, unthreaded shank below the head, followed by a threaded tip. The smooth shank provides a precise fit within alignment holes and delivers vastly superior shear resistance because there are no thread roots acting as stress concentration points across the joint's shear plane.
4.2 Standard Hex Bolts vs. Heavy Hex Bolts
Standard hex boltsadhere to regular width-across-flats dimensions. Conversely, Heavy Hex Bolts (such as those specifying ASTM A325 or ASME B18.2.1) feature a noticeably larger head diameter and height. This expanded head size provides a larger bearing surface area, distributing massive structural clamping forces across a wider area of the connected metal plates, thereby preventing the fastener from crushing the underlying material.
5. Main Industrial Applications of Hex Bolts
Due to their robust design and ease of installation, hex bolts are relied upon across numerous major sectors.
5.1 Infrastructure, Building, and Civil Engineering
In structural steel construction, hex bolts are the primary mechanisms used to splice massive I-beams together, form columns, and anchor frameworks to concrete foundations. They are heavily favored in bridge construction because they can be precisely tightened to calculated target preloads using calibration wrenches, allowing the joint to rely on friction between steel plates rather than relying solely on the shear strength of the bolt body.
5.2 Automotive Manufacturing and Heavy Machinery
The automotive and transportation sectors consume vast quantities of high-strength hex bolts. They secure critical, high-vibration assemblies such as suspension arms, engine mounts, transmission casings, and braking calipers. In heavy industrial equipment—like earthmovers, cranes, and manufacturing presses—hex bolts provide the predictable mechanical integrity needed to withstand constant cyclic stress and impact loads.
5.3 Power Generation and Marine Applications
From wind turbine tower flanges to offshore oil rigs, hex bolts keep critical power infrastructure secured against the elements. In these environments, hot-dip galvanized or stainless steel hex bolts are specified to ensure that the integrity of the bolted joints remains uncompromised despite relentless atmospheric moisture, thermal expansion, and chemical exposure.
6. Conclusion
The external hex bolt is a masterpiece of geometric simplicity and mechanical efficiency. By optimizing wrench contact surfaces, utilizing continuous metal grain structures through cold-forging, and adhering to strict international property gradings, this fastener delivers predictable clamping forces across critical applications. Selecting the appropriate thread configuration, size, and material grade ensures that your assemblies will remain securely bound throughout their intended operational lifespans.
