In perimeter security defense and physical barrier engineering, Barbed Wireand Razor Wire are the two most widely used and classic metallic obstacle materials. Whether in border defense, military bases, high-security prisons, or along railway lines, orchards, farms, and industrial parks, their presence is ubiquitous.
However, when faced with different security requirements, procurement managers and project contractors often face a dilemma: Should they choose economical and practical barbed wire, or highly deterrent razor wire? Which one delivers better practical security and protection?
This article will deeply analyze the physical characteristics and scientific differences of these two core security barriers from the dimensions of manufacturing craftsmanship, defensive mechanisms, resistance to destructive forces, construction costs, and application scenarios.
1. Structural Analysis and Manufacturing Processes: How Do They Radically Differ?
To evaluate the protective efficacy of both options, it is essential to first understand their fundamental differences from the perspective of physical structure and manufacturing processes.
1.1 Structural Characteristics of Traditional Barbed Wire
The manufacturing process of traditional barbed wire (often referred to as catch-wire or iron caltrop wire) is relatively straightforward. It is primarily manufactured by fully automated barbed wire machines that twist high-tensile low-carbon steel wire or galvanized iron wire together. Pointed wire barbs are then wrapped around the main line strands at specific intervals, forming a linear cable with four-point or two-point sharp barbs. The barbs of barbed wire are point-based spikes. Although sharp, there are noticeable gaps between the barb points, and the overall profile presents a linear, stretched line.
1.2 Structural Characteristics of Razor Wire

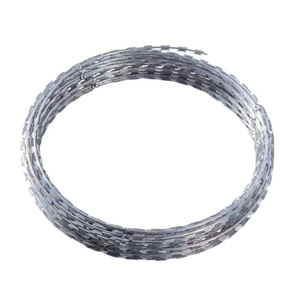

Razor wire, on the other hand, is the product of combining modern metallurgy with precision stamping technology. Its core structure is divided into two parts: an inner core wire made of high-carbon steel wire, and an outer strip consisting of a galvanized steel sheet or stainless steel sheet stamped with sharp-edged barbs. Through specialized mechanical wrapping technology, the stamped blade strip is tightly crimped onto the core wire. The barbs of razor wire are not ordinary points, but rather razor-sharp metal blades resembling scalpels (typically configured in different models such as BTO-22 or CBT-65), which are exceptionally sharp and tightly arranged.
2. Defensive Mechanisms and Psychological Deterrence: Which Possesses Superior Physical Interdiction Capability?
The core value of physical interdiction relies on two factors: delaying the intruder's breach time, and inflicting severe physiological pain coupled with psychological fear.
2.1 Defensive Mechanism of Barbed Wire: Relying Primarily on "Pricking and Snagging"
The defensive mechanism of barbed wire is relatively single-layered. When an intruder attempts to climb over or pass through barbed wire, the point-based barbs prick the skin or snag clothing. Because barbed wire is mostly installed in parallel horizontal lines, noticeable physical gaps exist between the strands. If an intruder wears heavy protective clothing, thick coats, or utilizes tools like heavy blankets or wooden boards, they can flatten or cross over the barbed wire with relative ease. Consequently, its barrier mechanism functions mostly at a "warning and delaying" level.
2.2 Defensive Mechanism of Razor Wire: Relying Primarily on "Active Cutting and Entangling"
The defensive mechanism of razor wire (especially the concertina, helical crossed razor wire type) is catastrophically effective.
Physical Cutting: Its stamped blades are not only sharp but also feature barbs. Any physical contact causes the blades to slice directly through clothes and into flesh, and standard thick clothing or heavy canvas offers virtually no protection against this mechanical slicing force.
Three-Dimensional Entanglement: Concertina razor wire forms a three-dimensional cylindrical maze when deployed. When an intruder attempts to force their way through, the wire coil springs back elastically under tension, causing the blades to catch and hook the intruder from multiple angles simultaneously. This creates a chain-reaction injury: "the more they struggle, the tighter it binds, and the deeper it cuts."
From a psychological deterrence perspective, the dense, glinting blades of razor wire deliver an intense visual intimidation that can directly cause potential intruders to back away and abandon their break-in attempts.
3. Resistance to Sabotage and Longevity: Technical Indicators Under Scientific Testing
In professional physical security assessments, the material's resistance to shearing, tensile strength, and corrosion resistance are the core metrics that determine the quality of protection.
3.1 Core Material Shear Testing
Barbed Wire: The main strands used in barbed wire are mostly low-carbon steel wires. While they possess a degree of flexibility, they can be easily cut through in a matter of seconds using standard manual bolt cutters. Once a strand is severed, the parallel tension fails, easily creating an open gap for someone to pass through.
Razor Wire: The core wire of razor wire utilizes high-carbon spring steel wire (such as high-tensile cold-drawn steel wire), with a tensile strength that typically exceeds 1200 MPa. This highly hardened steel wire is extremely difficult to cut with ordinary portable manual tools, frequently requiring hydraulic cutters or specialized power tools. Furthermore, the helical crossed concertina configuration possesses multi-point hinged properties; even if cut in one or two spots, the mesh structure relies on other interconnected clips to maintain its original cylindrical form rather than collapsing instantly.
3.2 Longevity and Anti-Corrosion Coating Technologies
The durability of both barriers under long-term outdoor exposure to elements depends heavily on their surface anti-corrosion coating.
The zinc coating weight is generally low. Cut ends or twisted junctions easily shed their zinc layer due to wear, making it prone to rust in humid environments.
The stamped outer strip is tightly bonded to the high-hardness core wire. The stainless steel variant exhibits superb resistance to acid rain and salt spray, making it ideal for coastal or highly polluted industrial areas.
10 to 25 years (stainless steel lasts significantly longer)
4. Economic Costs and Construction: Multi-Dimensional Trade-offs of Cost-Effectiveness
Although razor wire completely dominates in terms of security performance, material procurement costs and installation difficulty remain critical variables that must be weighed in actual engineering projects.
4.1 Comparison of Material Procurement and Logistics Costs
Barbed Wire: Simple in structure and requiring less raw material, its cost per linear meter is very low. It is typically packed in tight, compact wire coils, occupying minimal transport space and keeping shipping costs extremely low.
Razor Wire: Because it involves complex processes such as steel sheet stamping, mechanical wrapping, and helical hinge clipping, its material and processing costs are significantly higher than those of barbed wire. This is especially true for concertina razor wire, which occupies a larger volume when expanded, making shipping more resource-intensive.
4.2 Construction Difficulty and Safety Risks
Barbed Wire: Installation is relatively simple and safe. Workers only need to set up the fence posts, use basic tensioners to pull the barbed wire strands horizontally, and secure them to the posts. It demands minimal specialized technical training from the laborers.
Razor Wire: The installation process carries high safety risks. Because the blades are incredibly sharp, workers must wear heavy, specialized cut-resistant gloves, protective sleeves, and dedicated safety gear. When installing concertina wire, the coils must be precisely stretched, positioned, and fastened at high elevations using stainless steel clips. A single misstep can lead to severe lacerations, resulting in noticeably higher labor costs.
5. Tailoring to Site Needs: Scientific Application Recommendations
Based on the comparisons above, barbed wire and razor wire are not mutually exclusive alternatives; instead, they should be scientifically matched to scenarios based on security levels, budgets, and the nature of what is being secured.
5.1 Low-Risk Applications Suited for "Traditional Barbed Wire"
Traditional barbed wire is better suited for vast areas with low-to-medium security ratings, where the primary goal is managing livestock or preventing accidental trespassing.
Agriculture, Livestock, and Forestry: Used to prevent cattle, sheep, and other large livestock from wandering off, or to block wild animals like boars from destroying crops.
Long Railway and Highway Corridors: Across hundreds of kilometers of enclosed sections, using barbed wire provides basic physical isolation to prevent pedestrians from accidentally stepping onto tracks, offering excellent cost-effectiveness.
5.2 High-Risk Areas Suited for "Razor Wire"
Razor wire is essential for perimeter defenses with high security requirements, where climbing must be absolutely prevented, and the risk of malicious intrusion is high.
Military Complexes and Prison Enclosures: Installing concertina razor wire along the tops of high walls creates a three-dimensional, virtually impassable terminal line of defense.
Border Lines, Substations, and Nuclear Power Plants: Provides the strongest physical interdiction against extreme threats such as human trafficking, smuggling, and terrorism.
Industrial Parks and Premium Private Estates: Commonly used as a top extension for standard fences (such as twin-wire mesh fences or zinc-steel palisade fences) to completely eliminate any possibility of climbing.
Conclusively, if considering purely security protection and physical interdiction performance,razor wire decisively defeats traditional barbed wire. It establishes an ironclad wall for modern physical security through its powerful mechanical cutting damage, its high-carbon steel core that defies easy cutting, and its unmatched visual psychological deterrence.

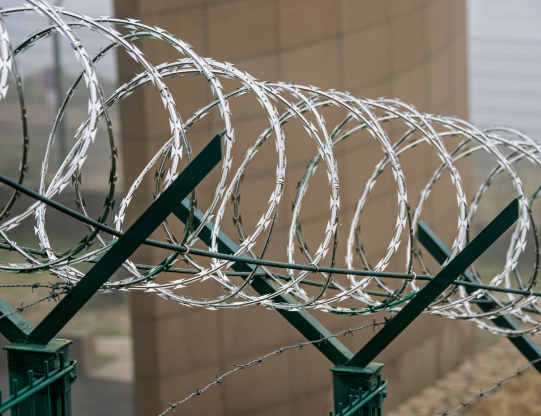

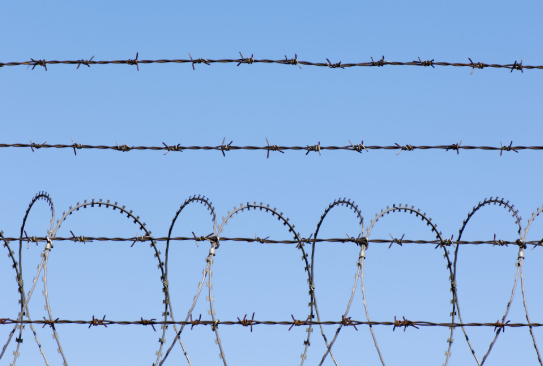

Nevertheless, in practical perimeter security engineering, a combination of "barbed wire + razor wire" often yields the best results: stringing multiple horizontal lines of barbed wire along the middle and lower sections of a fence keeps costs down, while deploying concertina razor wire along the very top or outer side seals off any climbing paths. This multi-layered, highly cost-effective composite defense design represents the most scientifically optimal choice in modern security engineering.
