Interior decoration projects often require large numbers of fastening connections for light-gauge steel framing, metal ceilings, ventilation ducts, and decorative metal panels. Traditional installation generally involves drilling a pilot hole before inserting a standard screw. This requires additional steps and can create alignment problems if the holes are not positioned accurately.
A self-drilling screw has a drill-bit-shaped point that can drill, form threads, and fasten components within its specified material-thickness range. When selected and installed correctly, self-drilling screws can improve installation efficiency and reduce the need for additional tools.
I. How Do Self-Drilling Screws Work?
Aself-drilling screw consists of a drill point, threaded shank, screw body, and head. During installation, the drill point first cuts through the metal and creates a hole. The threads then engage with the hole wall, and the screw head clamps the components together.
The main difference between a self-drilling screw and an ordinary self-tapping screw is that a self-tapping screw usually requires a pilot hole. A self-drilling screw can drill directly into compatible materials within its rated capacity.
Metal studs, thin steel sheets, and metal components
Plastics, timber, and thin metals
Thicker components or higher-load joints
II. Main Applications of Self-Drilling Screws in Interior Decoration
1. Light-Gauge Steel Framing Connections
In partition walls and suspended ceilings,self-drilling screwscan connect light-gauge steel studs, reinforcement pieces, brackets, and certain ceiling components. The drill point can penetrate compatible thin steel members without a separate drilling process.
However, gypsum board is generally fixed using drywall screws selected for the specific board and framing system. Self-drilling screws are primarily suitable for metal-to-metal framing connections and should not automatically replace every type of drywall screw.
2. Metal Ceilings and Decorative Panels

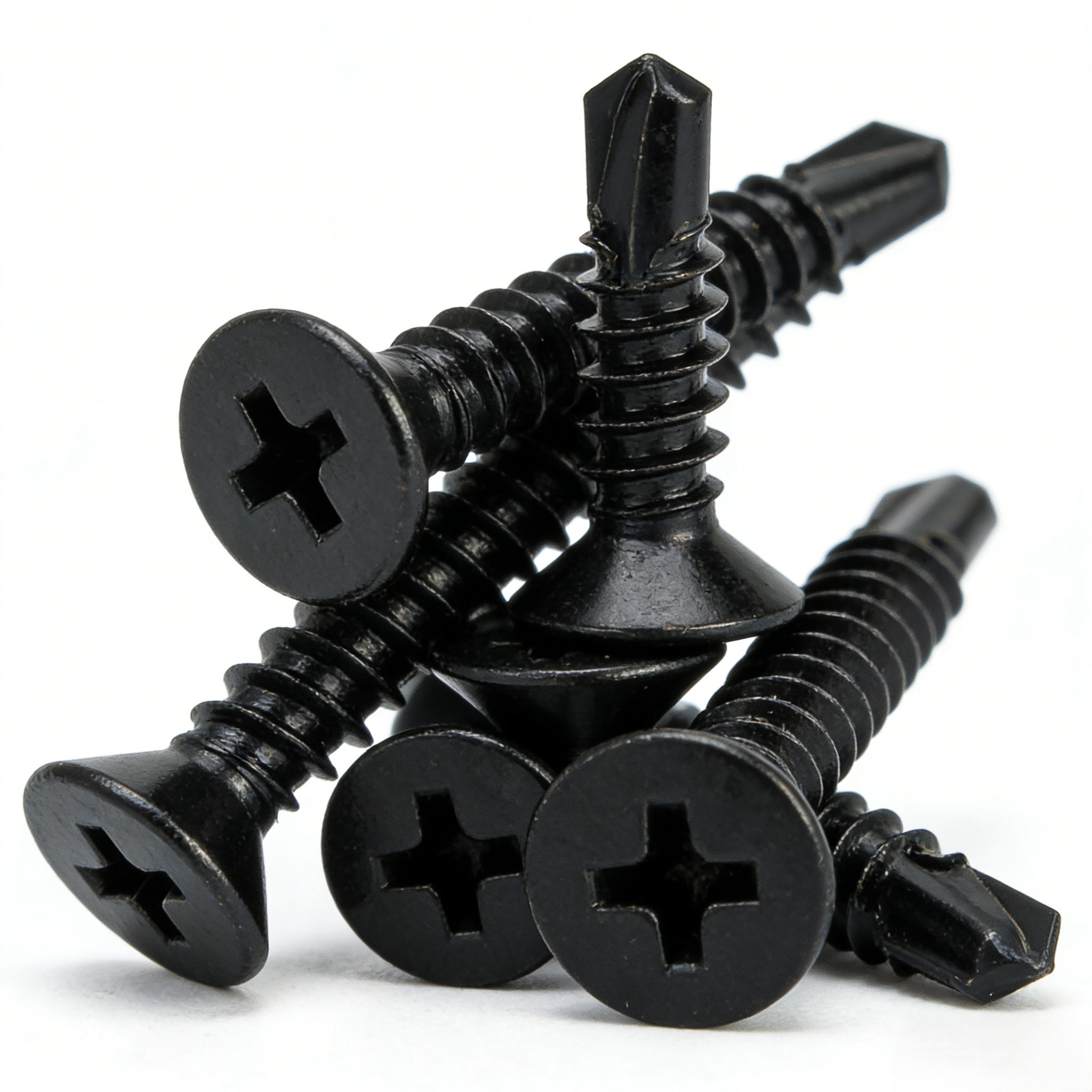

Aluminum panels, thin steel sheets, and certain metal decorative panels must be fixed to metal support frames. Pan-head or washer-head self-drilling screws can provide a larger clamping area. Where a relatively flush surface is required, an appropriate countersunk-head design may be selected.
The screw head must meet both structural and appearance requirements. Excessive countersinking can weaken a thin panel, while an oversized raised head may interfere with the final decorative finish.
3. Ventilation Ducts and Mechanical Components
Indoor ventilation ducts, cable trays, thin-sheet enclosures, and certain equipment brackets are commonly made from sheet steel. Self-drilling screws can be installed from one side, making them useful where the rear side is inaccessible.
In electrical applications, the exposed screw point must not damage internal cables. Joints requiring fire resistance, vibration isolation, or airtightness may also require compatible washers or sealing materials.
4. Metal Furniture and Display Structures
Self-drilling screws can also be used for metal cabinets, display racks, partition frames, and lightweight furniture. Their removable structure can simplify later maintenance, transportation, and component replacement.
III. Main Advantages of Self-Drilling Screws
1. Fewer Installation Steps
A self-drilling screw can drill, form threads, and fasten in one operation. This eliminates separate drilling, drill-bit changes, pilot-hole alignment, and some hole-cleaning work.
The time-saving advantage becomes particularly noticeable in repetitive installations involving light-gauge steel framing and sheet metal.
2. Reduced Hole-Alignment Errors
Traditional pre-drilled connections require the holes in two components to be positioned accurately. Even a small deviation can make assembly difficult.
A self-drilling screw can be driven after the components have been temporarily aligned and clamped. When installed correctly, this helps maintain more consistent connection positions.
3. Suitable for One-Sided and Confined-Space Installation
Bolt connections usually require a nut on the back of the joint. Self-drilling screws can be installed from one side, which is useful inside suspended ceilings, metal partitions, and confined areas around equipment.
4. Easier Disassembly and Maintenance
Unlike welded connections, self-drilling screws can be removed when hidden services must be inspected, decorative panels replaced, or metal components adjusted.
However, repeated disassembly can enlarge the threaded hole and reduce holding strength. The same hole should not be reused indefinitely.
5. Multiple Head Styles and Surface Treatments
Self-drilling screws are available with pan heads, countersunk heads, hex washer heads, and other configurations. Depending on the environment, they may be zinc-plated, phosphated, or manufactured from stainless steel.
This allows the fastener to be matched to different power tools, appearance requirements, and corrosion conditions.
IV. How to Select Self-Drilling Screws Scientifically
Selection Factor
What to Consider
Risk of Incorrect Selection
Substrate material
Thin steel, aluminum, or light-gauge steel framing
Drill point cannot penetrate or threads do not engage properly
Combined material thickness
Total thickness of the connected components
Drill point is too short to complete drilling
Screw length
Sufficient thread engagement after passing through the components
Loose connection or interference with cables
Head type
Clamping area, surface finish, and installation tool
Panel deformation or unsuitable appearance
Corrosion protection
Dry indoor area, kitchen, bathroom, or humid environment
Corrosion and reduced connection strength
Installation torque
Material thickness and screw specification
Thread stripping, screw breakage, or panel deformation
Every self-drilling screw has a defined drilling-capacity range. The steel thickness it can penetrate depends on screw diameter, drill-point length, substrate hardness, tool speed, and other factors. Capacity should not be judged by appearance alone.
A trial installation using the actual substrate is recommended before large-scale construction begins.
V. Correct Installation of Self-Drilling Screws
First, position and secure the two components correctly. Hold the screw as close as possible to perpendicular to the material surface.
Begin with an appropriate power-tool speed so that the drill point can engage without slipping. Once the drill point penetrates the metal, tool resistance will change. At this stage, control both forward pressure and final tightening torque.
Stop driving when the screw head is properly seated. Continued rotation may strip the formed threads, break the screw, or deform the thin sheet.
For kitchens, bathrooms, and other humid spaces, select a suitable protective coating or stainless-steel material. Where dissimilar metals are connected, the possibility of galvanic corrosion should also be considered.
VI. Self-Drilling Screws Are Not Suitable for Every Interior Connection
Self-drilling screwsshould not be driven directly into concrete, brick, or ordinary masonry. These substrates generally require expansion anchors, concrete screws, or other specialized anchoring systems.
Fastener selection for primary load-bearing structures, suspended loads, or connections with seismic and fire-resistance requirements must not be based only on convenience. The screw specification, spacing, quantity, and load capacity should be determined by the project designer or applicable system requirements.
JIAYUAN self-drilling screws are available in different head styles, materials, and surface treatments for steel structures, roofing systems, and sheet-metal fastening. For interior decoration applications, the drilling capacity, thread length, and corrosion resistance should be confirmed for the actual material combination.
VII. Conclusion
The main advantage of self-drilling screws in interior decorationis their ability to combine drilling, thread formation, and fastening in one operation. They are particularly suitable for light-gauge steel framing, metal ceilings, ventilation ducts, decorative panels, and lightweight metal furniture.
However, installation efficiency depends on correct product selection and controlled driving. Contractors should consider substrate material, sheet thickness, screw length, head style, corrosion resistance, and installation torque.
Only when the self-drilling screw’s drilling capacity matches the actual materials can it provide a stable, neat, and durable fastening connection.
