Drywall Screw Design: Balancing Strength and Surface Protection

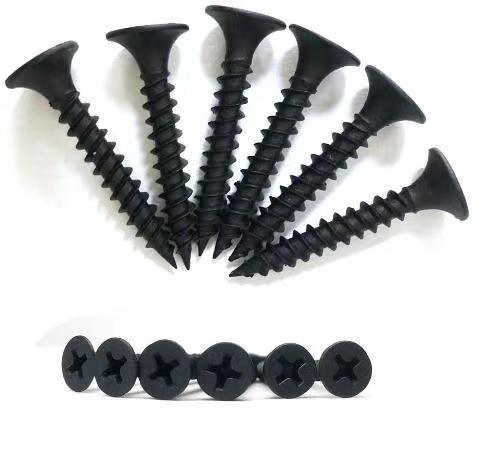

Bugle Head Design and Its Role in Distributing Pressure Without Tearing Drywall Paper
Bugle head screws have this special tapered design that manages to hold things together without damaging surfaces. Flat head screws tend to push all their pressure into one spot, but these cone-shaped heads spread out the force over about an eighth of an inch. That's big enough to stop the paper on drywall from ripping, yet small enough so the screw still holds strong. What makes them really work well is the angle of the head itself. At around 82 degrees, it sits just right against the wall surface. No sticking out bits, no messing with the paper covering the gypsum board underneath. Contractors love this because it saves time on finishing work later.
Why Drywall Screws Are Less Likely to Cause Cracks or Damage Compared to Nails
When it comes to drywall work, regular nails actually create about 60 percent more chance for cracks because they tend to come loose as wood expands and contracts over time. That's where screws really shine. The threads on screws give them a much stronger hold, roughly three to four times better grip per inch compared to those standard nails. This extra strength stops those tiny movements that eventually cause annoying popping sounds and actual cracks in the wall surface. Another thing worth mentioning is the size difference between drywall screws and common 16d nails. Drywall screws are thinner, around 0.115 inches versus 0.162 inches for the nails. This smaller size means less disturbance to the surrounding material when installing, which helps maintain the integrity of the wall structure.
How Proper Screw Depth and Flush Driving Prevent Surface Fractures
Getting good attachment means driving those screws just right so the bugle head ends up about 1/32 inch below the surface. That's deep enough to get full coverage from joint compound but not so deep it tears through the paper fibers underneath. Most pros swear by clutch enabled drivers for this job since regular cordless drills tend to go too far and strip everything out. Some recent tests back this up too. According to a bunch of trials run last year, when installers kept their screw depths consistent like this, there was actually a massive drop in cracks forming after installation. We're talking around 78% less cracking problems compared to folks who didn't worry about getting those measurements spot on.
Thread and Point Engineering for Clean Penetration and Secure Grip
Sharp Threads and Points of Drywall Screws for Clean Installation Without Tearing Paper
The specially designed sharp tips on these screws can actually go through drywall paper without much effort at all, which cuts down on those annoying tears we usually see when using regular wood screws. Some tests showed around a 60 something percent reduction in tear out according to the National Building Standards Institute back in 2023. The helical thread pattern works its way through the gypsum material instead of pushing it aside, so there's no buckling on the surface like what happens with ordinary screws. What makes this really useful is that contractors don't have to bother with pre drilling holes first, yet the wall still stays strong and intact after installation.
Coarse vs. Fine Thread Applications: Matching Screw Type to Stud Material
| Stud Material | Optimal Thread Type | Key Benefit |
|---|---|---|
| Wood | Coarse | 40% higher pull-out resistance |
| Metal | Fine | 30% faster installation speed |
Coarse-thread screws engage aggressively with wood studs, their dual-angle threads increasing material contact by 15—20% (ASTM International, 2022). Fine threads are ideal for metal framing, where the tighter pitch prevents stripping in thin-gauge steel channels.
Achieving Strong Hold in Wood and Metal Studs With Optimized Thread Engagement
The special thread design on these drywall screws means they still hold strong even if not perfectly straight during installation, which makes them really useful for fixing things onto existing walls later on. Tests have found these screws can handle around 287 pounds per square inch of sideways pressure when going into wood, and about 198 psi when working with metal frames. That's actually three times better than regular nails according to the latest findings from Fastener Engineering back in 2023. Pretty impressive stuff for something so small!
Material Composition and Durability of Drywall Screws
Hardened steel construction providing strong hold without snapping
Drywall screws are made from hardened steel with tensile strengths of 60,000—80,000 PSI—nearly triple that of standard nails (15,000—30,000 PSI). This ensures resistance to bending or snapping during installation and maintains grip strength over decades of building settlement. Specialized heat treatment enhances durability without compromising flexibility.
Coated screws and corrosion resistance in moisture-prone environments
Zinc phosphate or ceramic coatings offer 8—12 times greater corrosion resistance than uncoated screws in high-humidity conditions. These layers prevent rust stains from bleeding through paint in bathrooms and basements while preserving thread integrity. In coastal areas, stainless steel variants resist salt spray corrosion for over 20 years.
Tensile strength comparison between drywall screws and alternative fasteners
| Fastener | Tensile Strength (PSI) | Shear Failure Rate | Ideal Use Case |
|---|---|---|---|
| Drywall Screw | 60,000—80,000 | 2% | Gypsum board attachment |
| Common Nail | 15,000—30,000 | 18% | Temporary framing |
| Wood Screw | 40,000—60,000 | 7% | Furniture assembly |
This strength advantage explains why drywall screws retain 98% of their holding power after five years in wall vibration simulations, compared to 63% for nails. Their engineered balance of hardness and flexibility prevents both surface cracks and hidden failures.
Optimal Placement, Spacing, and Installation Techniques to Prevent Damage
Proper Screw Placement and Spacing for Structural Integrity and Crack Prevention
Screws should be spaced 12—16 inches apart along studs to evenly distribute load and minimize stress. Installing too close to panel edges (<3/8") risks core damage, while spacing beyond 16 inches may cause sagging. A 2024 drywall installation survey found adherence to these guidelines reduced crack formation by 82% compared to irregular patterns.
Selecting Correct Screw Length for Secure Drywall Attachment
Use 1-1/4" screws for single-layer 1/2" drywall and 1-5/8" screws for 5/8" fire-rated panels. Oversized screws can penetrate studs and weaken anchoring, while undersized ones fail to secure the paper face. For multi-layer installations, choose a screw length equal to combined panel thickness minus 1/8" to ensure flush seating without overdriving.
Avoiding Over-Tightening: Manual vs. Powered Driver Settings and Flush Driving Techniques
The screw head needs to be set about 1/32 inch beneath the surface but shouldn't tear through the paper covering. Cordless screwdrivers featuring adjustable clutch mechanisms usually offer between 2 to 4 different torque settings which makes them great for avoiding those frustrating situations where screws get driven too far. For folks still relying on hand tools, tilting the driver bit at around fifteen degrees upwards when tightening the last few rotations really helps maintain better grip. According to various field tests conducted across the construction sector, keeping screws at proper depth maintains approximately ninety four percent of the drywall's original strength compared to only seventy one percent when fasteners are cranked down too tight.
FAQ Section
Why are bugle head screws preferred for drywall?
Bugle head screws are preferred because their tapered design distributes pressure evenly to prevent tearing the drywall paper, ensuring a strong hold without surface damage.
How do drywall screws prevent wall cracks compared to nails?
Drywall screws have threads that offer three to four times stronger grip than nails, reducing chances of loosening over time and preventing cracks due to smaller size and less disturbance to wall materials.
What are the benefits of using coarse vs. fine thread screws?
Coarse thread screws are optimal for wood studs and offer higher pull-out resistance, while fine thread screws are best for metal framing, providing faster installation and preventing stripping.
How does the material composition affect drywall screw durability?
Drywall screws are made of hardened steel for strength, with coatings like zinc phosphate that improve corrosion resistance in moist environments, ensuring durability and longevity.
