Duplex Head Nails for Construction & Formwork Projects | Factory Direct Supply

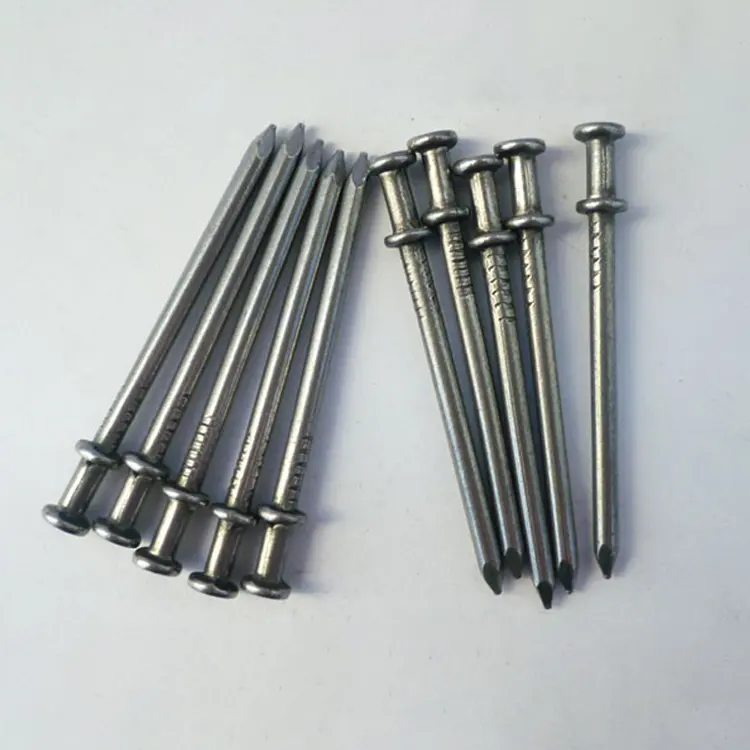

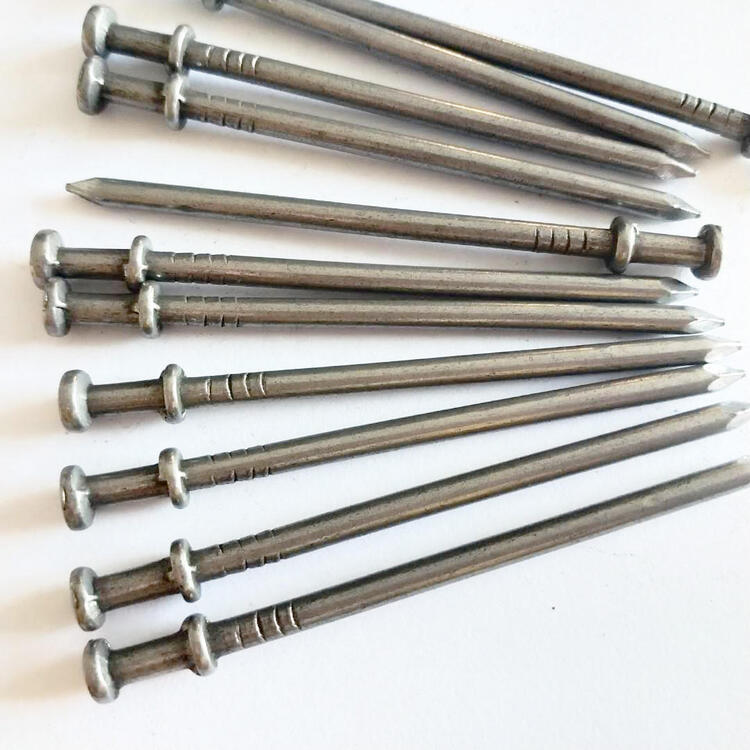

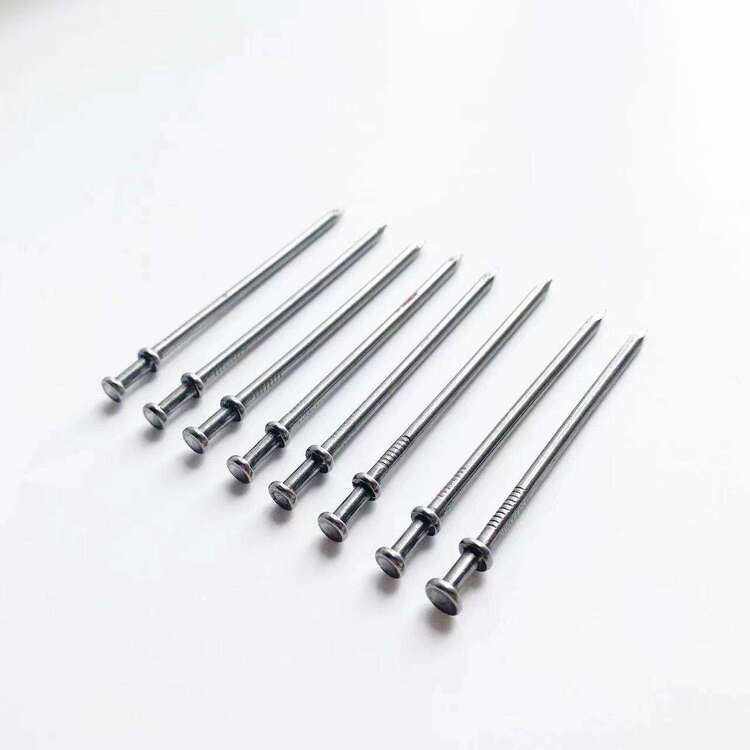

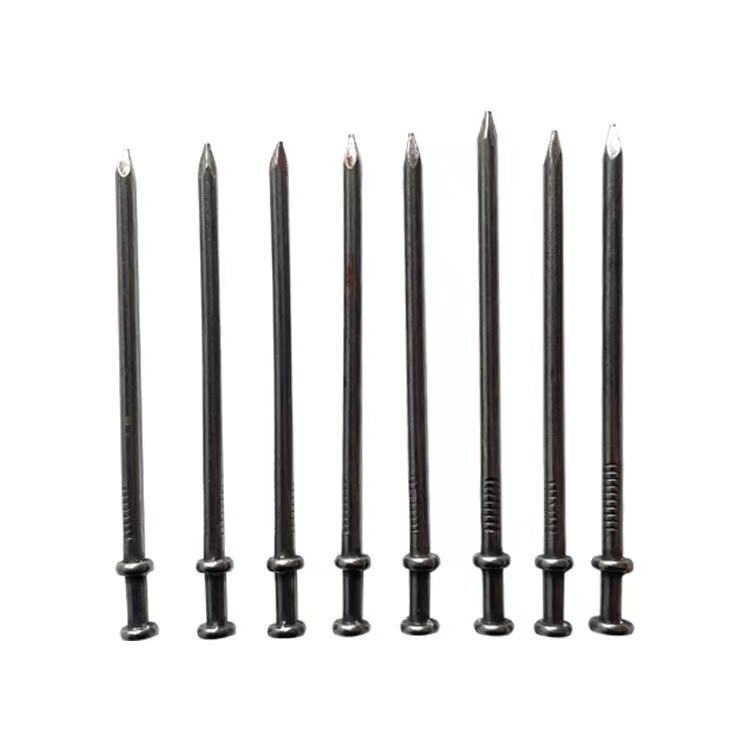

These duplex nails (double-headed nails) are designed for temporary fastening and easy removal.
Core use case: Primarily used in construction to secure wooden concrete formwork, scaffolding, and temporary bracing.

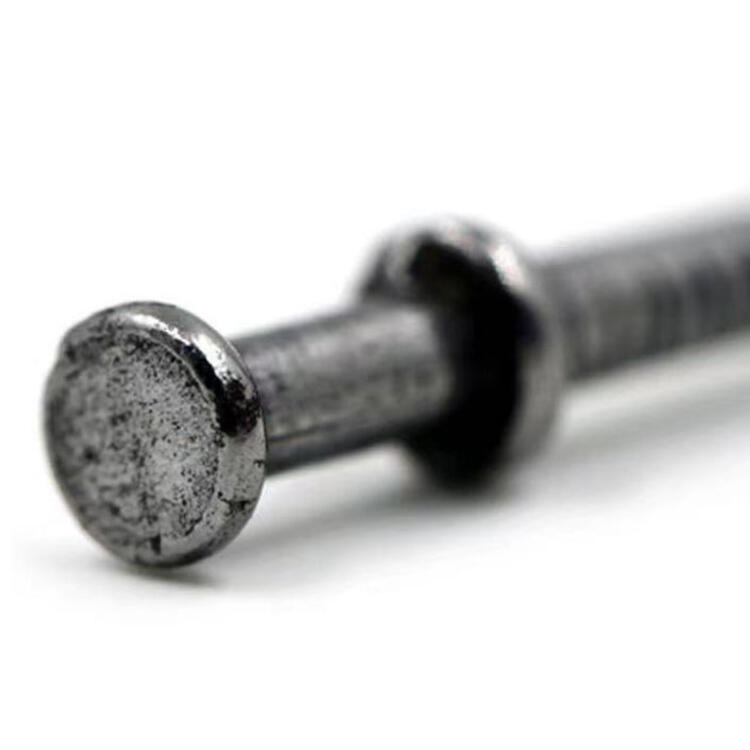

Key advantage: The second exposed head allows for quick, clean removal with a claw hammer or nail puller after use, without damaging the wood. This makes the formwork reusable and saves labor.
Other uses: Ideal for temporary assembly and positioning in carpentry, where parts need to be adjusted before permanent fastening.

Quantity:
Availability:





Inquire

Model:
Duplex Head Nails
Brand:
JIAYUAN

Duplex Head Nails

Size	Gauge No.	Length Overall in.	Length under Lower Head in.	Diam Top Head in.	Diam Lower Head in.	Distance between Head in.	Approx. Number per lb
6d	11 1/2	2 7/64	1 3/4	3/16	17/64	1月4日	156
8d	10 1/4	2 5/8	2 1/4	15/64	9/32	"	90
10d	9	3 3/16	2 3/4	1/4	5/16	5/16	59
16d	8	3 1/2	3	9/32	11/32	3/8	45
20d	7	4 1/64	3 1/2	5/16	3/8	"	28
30d	6	4 37/64	4	21/64	7/16	7/16	22

Product Details Presentation

Product Advantages

Easy Removal Without Damaging Materials

The double-head design allows the nail to be quickly removed through the exposed head after use, preventing damage to wooden formwork and reducing material waste and replacement costs.

Complete Size Range for Various Applications

Available in sizes ranging from 1-3/4" to 4", suitable for different formwork thicknesses and diverse construction project requirements.

Durable Construction & Strong Corrosion Resistance

Manufactured from high-quality low-carbon steel with optional galvanized surface treatment for enhanced rust resistance. The nails feature high hardness, excellent holding power, and resistance to bending during temporary construction applications.

High Efficiency & Cost-Effective Solution

The nail can be driven flush to the first head for secure installation, while the double-head structure allows for fast and effortless removal, improving formwork turnover efficiency. Factory-direct supply ensures reliable quality and competitive pricing, making it ideal for concrete formwork, scaffolding, and temporary wood bracing applications.

Scenes Solution

Interior Decoration: Ideal for gypsum board partition walls, ceiling systems, and interior finishing projects.

Building Construction: Designed for fastening gypsum boards to light steel framing systems or wooden structures.

Furniture Manufacturing: Widely used for fixing plywood, particleboard, MDF, and other furniture panels.

Packaging & Wooden Crates: Suitable for assembling lightweight wooden boxes, pallets, and packaging crates.

Multi-Board Applications: Compatible with cement boards, calcium silicate boards, and other thin construction panels.

Package And Shipping

Standard Inner Box Packaging: Each Product Is Individually Packed In Standard Small Boxes With Clear Markings Of Model, Specifications, And Batch Number, For Easy Identification And Inventory Management.

Reinforced Outer Carton Protection: Multiple Inner Boxes Are Packed Into Export-Grade Corrugated Cartons With Internal Cushioning, Effectively Preventing Collision And Damage During Transit.

Palletized Fcl/Lcl Shipment: Cartons Are Palletized With Stretch Film And Strapping For Moisture And Dust Protection, Compatible With Forklift Handling, And Suitable For Both Fcl And Lcl Shipments.

Flexible Shipping & Delivery: Available For Sea, Land, And Multimodal Transport, With Loading Arrangements Aligned To Customers’ Schedules For Stable Delivery And Reduced Logistics Risks.
